Technical Parameter:

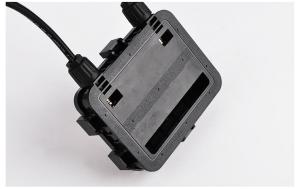

Junction Boxes for Use in Photovoltaic Modules and Panels
| Product Model | pvmh280 |
| Rated Voltage | IEC1500V/UL1500V |
| Rated Current | 12/15A |
| Ribbons Width | Max. 8mm |
| Glue Volume | 24/50mL |
| Wire Size | 4.0mm2/12AWG |
| Protection Degree | IP68(1m,1h) |
| Safety Class | Class Ⅱ |
| Flammability Class | UL94-V0,5VA |
| Insulation Material | PPO/PA66 |
| Metal Material | Copper |
| Overall Dimension | 100*75*15mm |
| Temperature Range | 一40℃~+85℃ |
PV Cable Extruder Machine
PV Solar cable extruder whole manufacturing production line solutions
Step 1,
Fine wire drawing machine. Inlet 1.2mm-1.6mm,Outlet 0.3mm
Step 2, Annealing and tinning machine to produce tinned copper wire 0.3mm
Step 3 630 Double twisting buncher to produce bunched 35/0.3,56/0.3,84/0.3
Step 4 70+90 PV solar cable extruder line
70+90mm PLC Extruder line
Application scope: apply to the production of PV cable (solar energy)
I. Equipment configuration:
| No. | Equipment name and specification | Specification | Quantity | Function | Remark1 |
| 1 | Double spools throwing wire pay off | Φ630 | 1 | Payoff | |
| 2 | Belts type tension controller | Φ200 | 1 | | |
| 3 | Vertical tension controller | Φ300+300 | 1 | | |
| 4 | High speed extruder | Φ70mm*26D | 1 | | |
| 5 | Laser diameter Gauge | LDG-25 | 1 | | |
| 6 | Front water tank | 2m+2m*2 | 1 | | |
| 7 | Vertical tension controller | Φ300 | 1 | | |
| 8 | High speed extruder | Φ90mm*26D | 1 | | |
| 9 | Laser diameter Gauge | LDG-25 | 1 | | |
| 10 | Temperature system control box | PLC type | 1 | | |
| 11 | Warm water tank | 2m | 1 | | |
| 12 | High speed printer | Dynamics mixer | 1 | | |
| 13 | Double layer fixed water tank | 4m+4m*2 | 1 | | |
| 14 | Horizontal type storage accumulator | 12m | 1 | | |
| 15 | Double capstans tractor | Φ600mm | 1 | | |
| 16 | Spark test | 15KV | 1 | | |
| 17 | Double spools take up | Φ800mm | 1 | | |
| 18 | Crosshead | U14 | 2 | | |
| 19 | Screw | | 2 | | |
| 20 | Butt welding tong | | 1 | | |
| 21 | Free spare parts | | 1 set | | |
Other project option
RV cable manufacturing whole line solutions making equipments power cable extruder
Step 1.
4 wires drawing machine to produce 0.24/0.25 annealed copper wire
Step 2
Wires bunching machine to produce bunched conductor
Step 3 70 PLC extruder to produce core cable
Step 4 1250 PLC cantilever type single twister to produce stranded 3/4 core cable
Step 5 90 PLC Extruder to produce finished cable
90mm PLC Extruder line
Application scope: apply to the production of PVC, PE, PP insulated wire
I. Equipment configuration:
| | No. | Equipment name and specification | Specification | Brand | Quantity | Function | Remark1 | Remark2 |
| | 1 | Pay off | Φ1250mm | | Two | Payoff | | |
| | 2 | Straightening table | Φ100mm | | One | Straighten wire Before coated | | |
| | 3 | High speed extruder core | Φ90×26Dmm | | One | Extrude wire | | |
| 4 | Temperature system control box | PLC type | System control | |
| | 5 | Primary-secondary moving water trough | 2M | | One | Cooling wire | | |
| | 6 | Single layer fixed water trough | 8m | | One | Cooling wire | | |
| | 7 | Horizontal type storage accumulator | 12M | | One | Tension control, wire store | | |
| | 8 | Double round capstan | Φ600mm | | One | Tract Cable | | |
| | 9 | End-axle type take-up and row-line rack | Φ1250mm | | One | Winding cable | With one unit coiling tray | |
| | 10 | High speed printer | Dynamics mixer | | One | Print outside Cable | | |
| | 11 | Fixed centering crosshead | U14 | | One | Extrusion molding | With one unit mold | |
| | 12 | Spare parts | | | One set | Equipment spare parts | |
| | 13 | Coating: standard color |
| | 14 | Production-line direction: Left release Right retracting: Right release Left retracting: |
| | 15 | Complete set of production-line installation length of the 25 to 28 meters (according to customer on-site sure) |
General technical specifications:
1. Applicable conductor core wire diameter: Φ 0.2mm - Φ 6.0mm
2. Finished outer diameter: Φ 0.4mm - Φ 8.0mm
3. Minimum insulation thickness: 0.2mm
4. Output: 25kg / HR (head opening, FEP, PFA, ETFE)
5. Maximum outlet speed: 12-120m / min (depending on the finished outer diameter)
6. Machine center height: 1000mm
